Collection: Gesipaยฎ GAV Automatic Riveting System
Gesipaยฎ is a top provider of innovative riveting technology solutions. They have changed industrial riveting with their advanced GAV Automatic Feed Riveting system. The GAV system simplifies and automates riveting, making it faster and more efficient for industrial use.
The GAV Automatic Rivet Gun system consists of a combination of hardware and software components. You can operate the rivet gun variants manually or integrate them into robotic systems.
Three different installation guns are available:

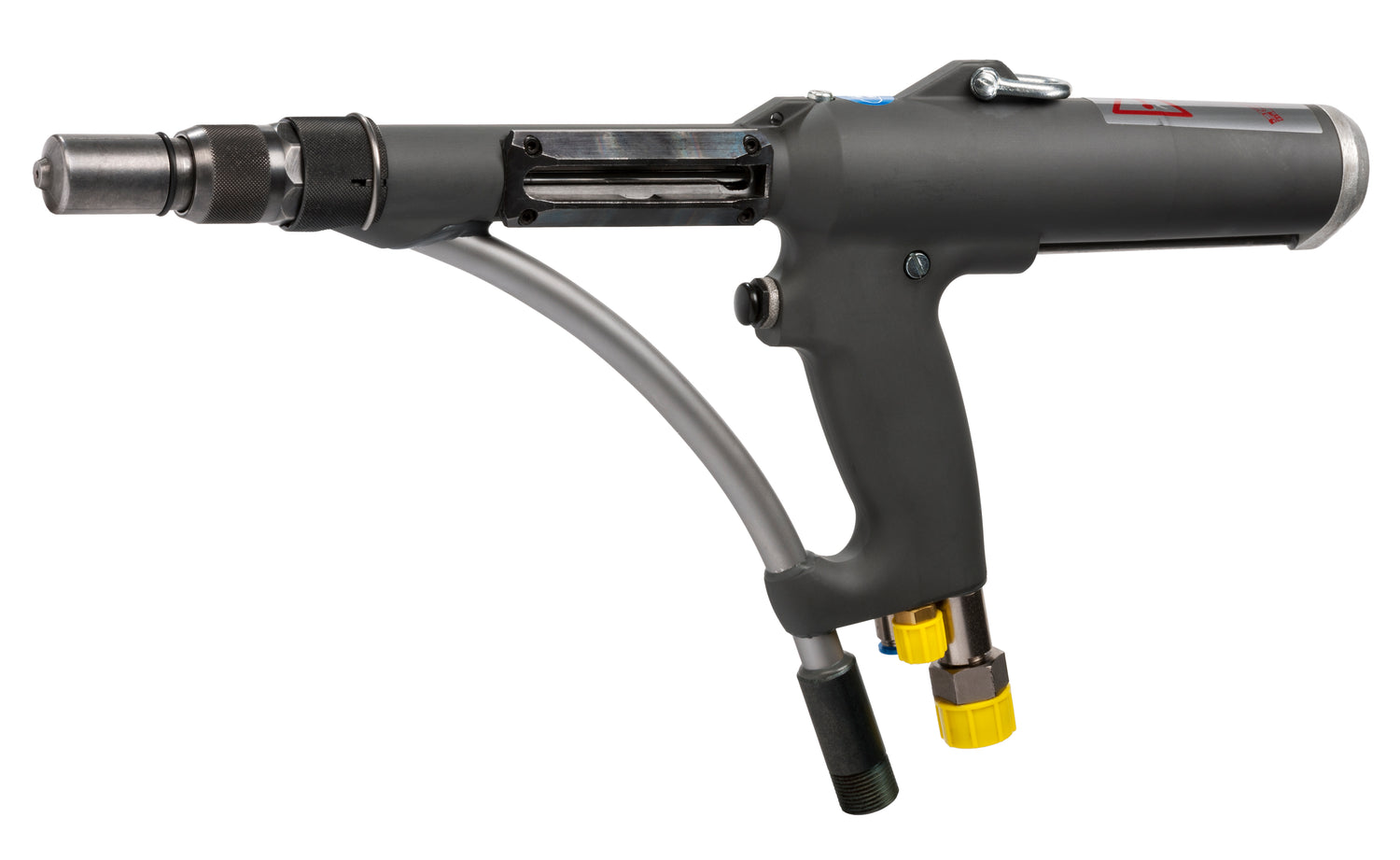

A standard rivet gun with a hose assembly fed from below
The standard rivet gun is for manual operation and is compatible with vertical and horizontal riveting. This variant offers the most economical option and allows an additional handle to improve ergonomics, reducing operator fatigue. This is particularly beneficial in a vertical riveting process application.

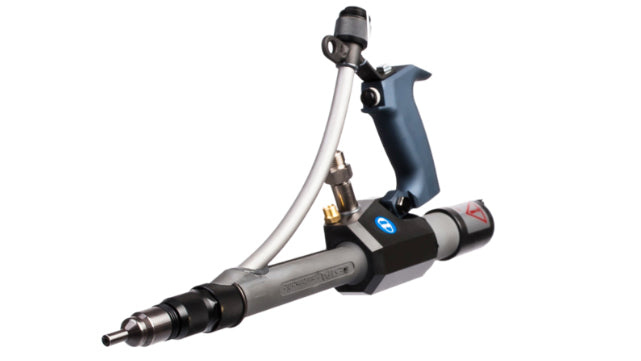

An overhead rivet gun with a hose assembly fed from above
The overhead rivet gun prevents the hose assembly from blocking the operator's legs. The overhead rivet gun also helps avoid contact between the hose and sensitive surfaces. This is also available with contact pressure monitoring.

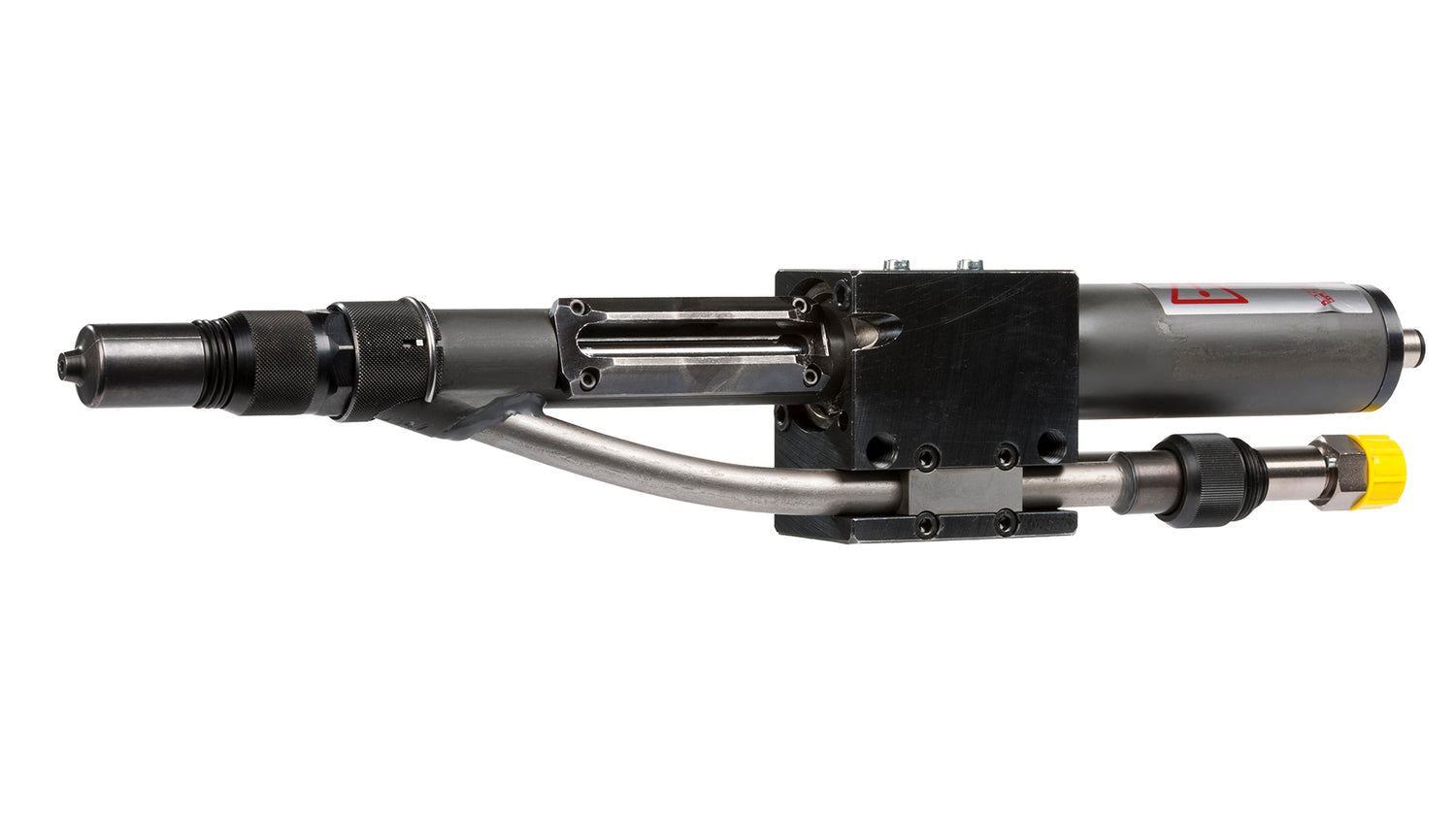

A robotic rivet gun
The robotic rivet gun can be used as part of fully automatic manufacturing systems and assembly lines operated by robots. You can configure it with an additional handle (with a trigger button) for manual operations.

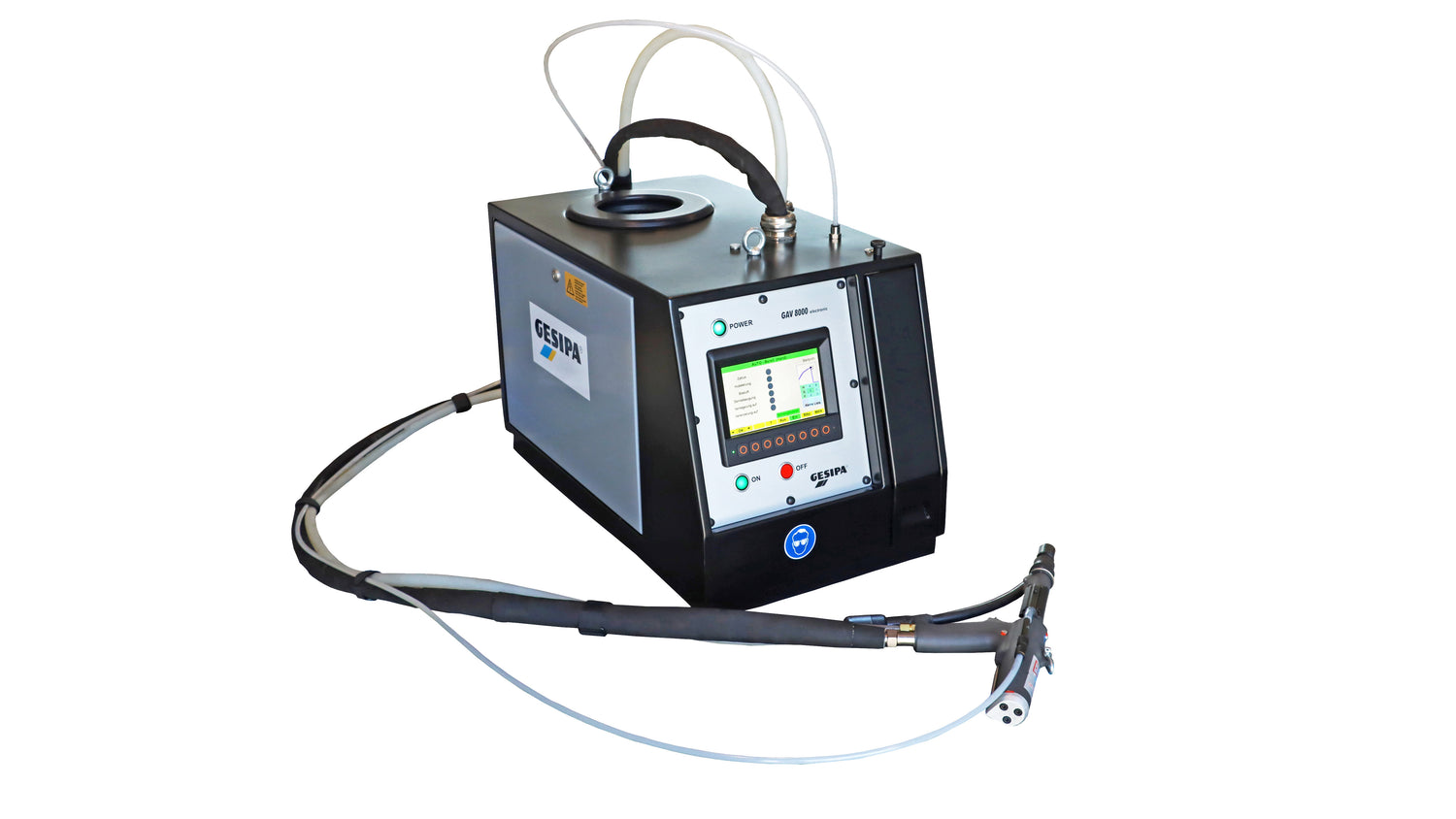

GAV 8000 Eco and Electronic
The Gesipa GAV 8000 Automatic Riveting Machine comes in two versions. One is the GAV 8000 Eco basic variant without installation process monitoring. The other is the GAV 8000 electronic variant for industrial manufacturing applications with integrated installation process monitoring.
Both versions will cut your time and costs by 50%. They can work alone, be part of a system, or connect to a robot.
Advantages:
If your annual requirement exceeds 500,000 blind rivets, the GAV 8000 is the most cost-effective choice for your needs. This new tool can cut your time and costs by up to 50% compared to regular blind riveting tools. These significant savings stem from the numerous advantages offered by the GAV 8000, including:
- Easy to operate, no specialist operating staff is needed
- Up to 40 rivets can be installed every minute within a maximum working radius of 5m
- Vacuum extraction of the spent mandrels
Working Capacity:
- รย 2.4ย mm to 6.4ย mm for aluminium rivets
- Up to รย 6ย mm for steel rivets
- Up to รย 5ย mm for stainless steel rivets
- Head diameter up to 11.4ย mm
- Rivet body lengths over 30ย mm
- Setting force up to 12,000ย N with an air pressure of 6ย bar
Improved Technology
Gesipa engineers redesigned the GAV auto-feed riveting tool with efficiency in mind. Several system changes and a customised setup have reduced air consumption by up to 24%. Despite this reduction in compressed air requirements, the GAVโs performance has even improved under certain conditions.
The GAV upgrade has also achieved significant progress in residual mandrel disposal. These changes have made the vacuum much stronger. The hose package can now reach a length of up to 8 meters, compared to the previous maximum of 5 meters.
What's New:
- The GAV saves up to 24% of compressed air, depending on the blind rivet used.
- The system requires less compressed air to operate
- Reduced air consumption minimises fluctuations in the customer's compressed air network
- The ability to use longer hose packages increases the GAV's flexibility
Partner With RivetLab - Your Trusted Gesipa GAV Supplier
RivetLab is proud to be the authorised dealer and trained supplier of Gesipa GAV automatic riveting systems in Australia. We dedicate ourselves to providing advanced riveting solutions and expert knowledge. This makes us the perfect partner for your automation needs.
When you choose RivetLab, you benefit from the following:
- Access to the latest Gesipa GAV models and configurations
- Expert guidance and customised support for system selection and integration
- Reliable after-sales service, including maintenance, repairs, and spare parts support
- Competitive Pricing
Take your riveting operations to the next level with Gesipa GAV automatic riveting systems.
