By Gesipa

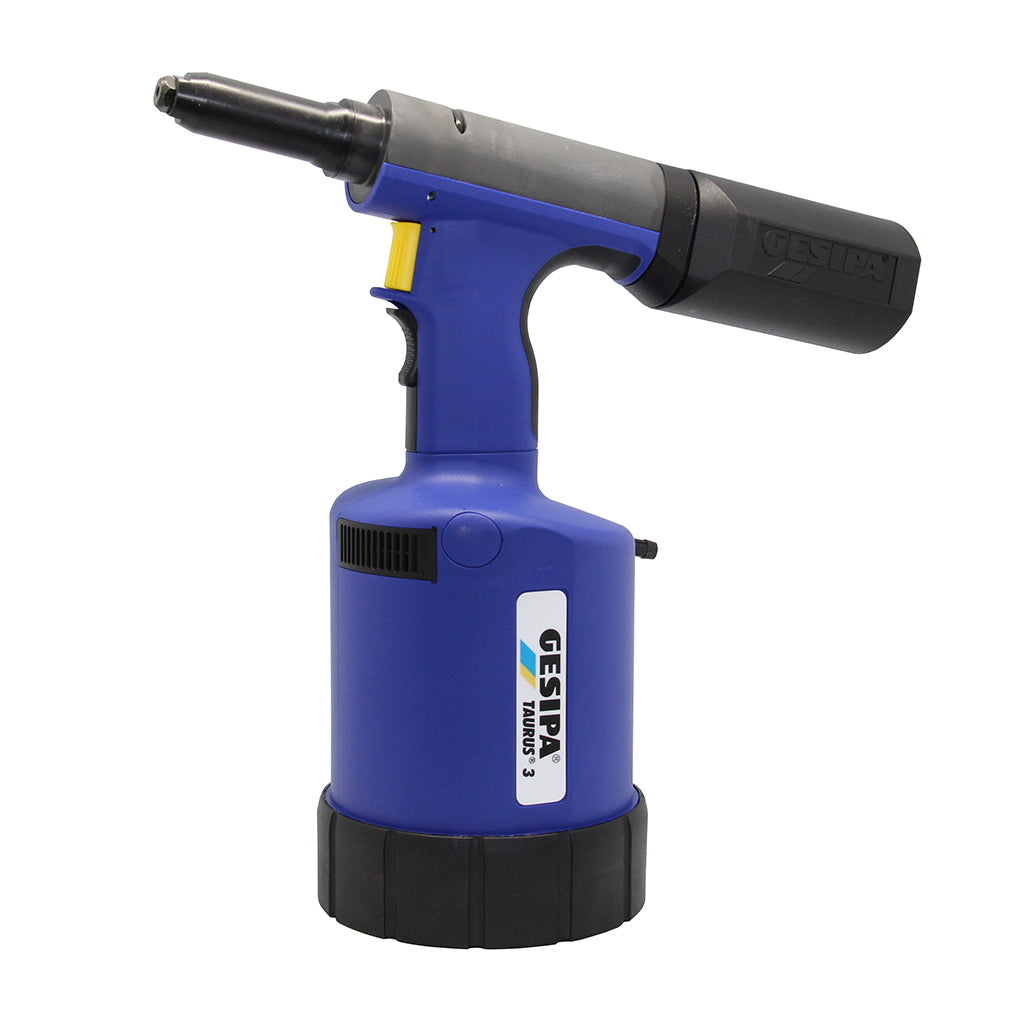

Gesipa® Taurus 3 Air Rivet Gun - 2.4mm-6.4mm Ø

Regular price $2,508.00 AUD
Regular price Sale price $2,508.00 AUD
GST included. Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Visa
SKU: GT-TAURUS3
Regular price $2,508.00 AUD
Regular price Sale price $2,508.00 AUD

Gesipa® Taurus® 3 is a light-weight, high performance Air Hydraulic Rivet Gun. It is ideal for setting Structural Rivets such as Avdel® Interlock®, Huck® Magna-Lok® and Avdel® Monobolt®. The increased stroke enables the tool to set rivets in one stroke.

It features a patented jaw-gripping mechanism. The jaws are pressed onto the mandrel using compressed air instead of the traditional spring force - no more worn springs to replace. As a result, the tool is more reliable and has a longer service life. When the trigger is depressed, high-pressure air clamps the jaws to the mandrels, the full stroke is utilised to set a rivet, and the clamping force is ten times higher than the spring method. The tool uses the same air to set the rivets and extract the mandrel. This tool provides considerable savings on compressed air usage.

FEATURES

  • The patented jaw mechanism ensures the full stroke of the tool available to set a rivet
  • Spring-loaded trigger system
  • A unique air consumption system sets the rivets and extracts the mandrel using the same air - significant cost savings on air usage
  • Readily accessible nosepieces
  • Spring balance attachment for fatigue-free operation
  • Mandrel collecting system with swivelling air deflector
  • Rubberised, moulded grip avoids slipping

We offer shipping to almost any address in Australia through Express Post (Australia Post) or courier services. Currently, international delivery is not available.

Depending on the product weight and your postcode, shipping charges will be calculated during the Checkout Process. In some remote areas, we may contact you to discuss additional shipping costs or determine the best method for your location. If the costs are not acceptable, we can fully refund your purchase.

For further info, refer to our Shipping Policy.

Specifications


Brand

Technical specifications


  • Weight

    1.9 kg
  • Operating air pressure

    5-7 bar
  • Height

    317 mm
  • Length

    312 mm
  • Pulling force

    18 KN at 6 bar
  • Stroke

    25 mm

Package Accessories

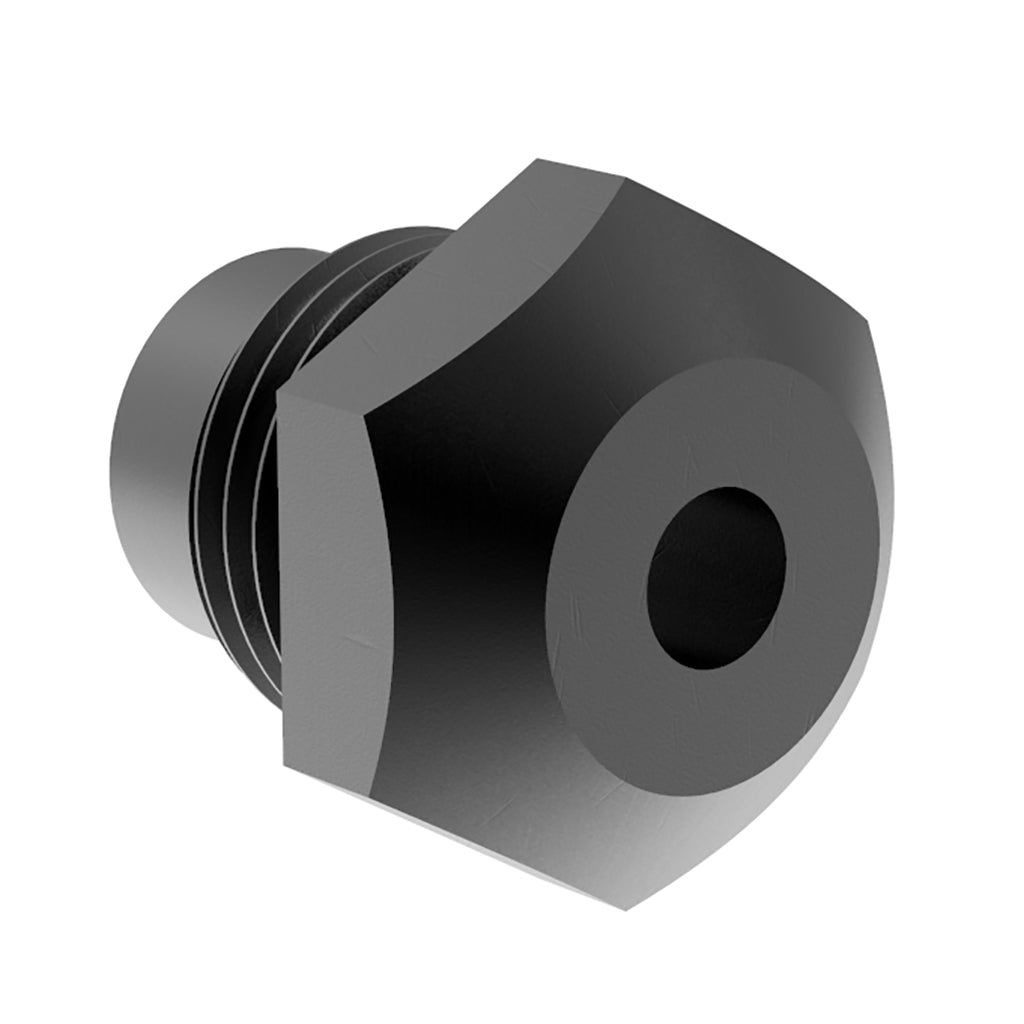

  • gesipa nosepiece

    Nosepieces: 17/36, 17/40 and 17/45

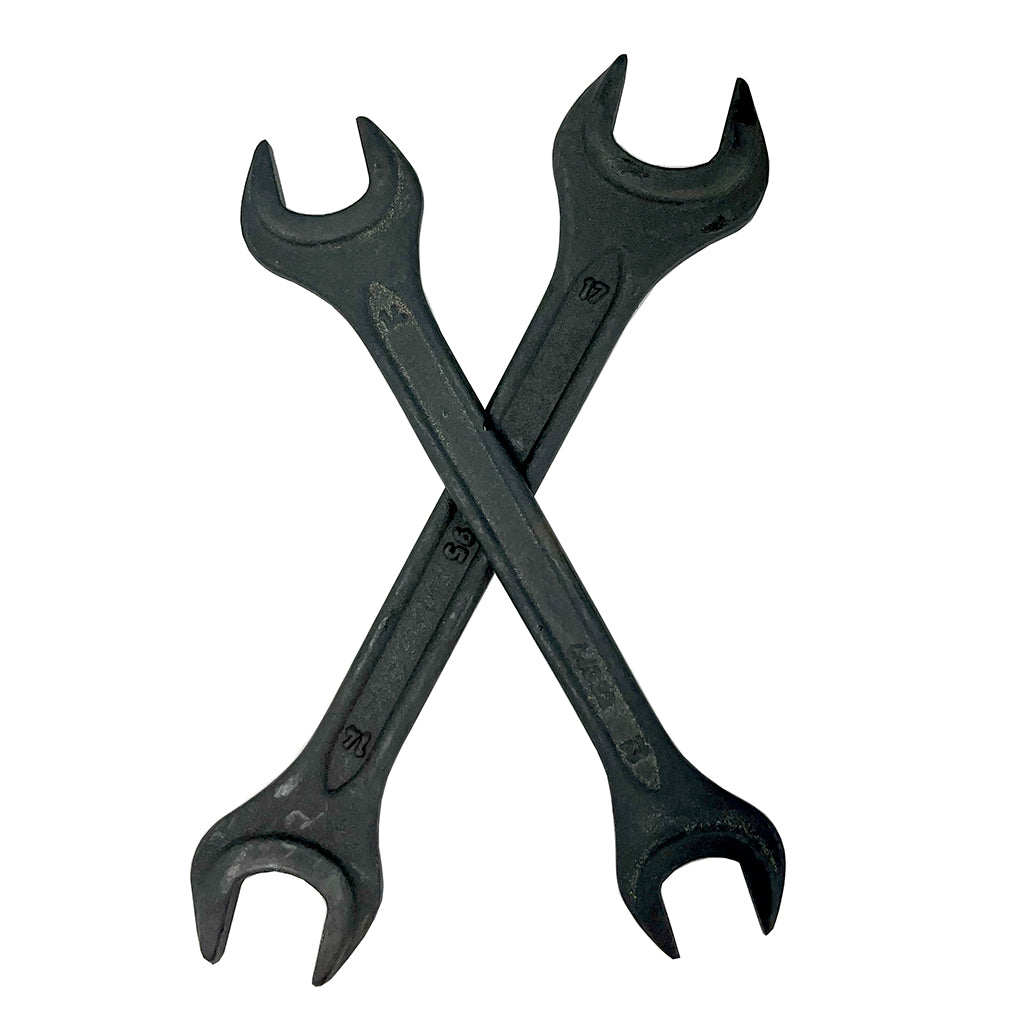

  • Gesipa Maintenance Spanner

    Maintenance Wrench: SW 12/14, SW 14/17

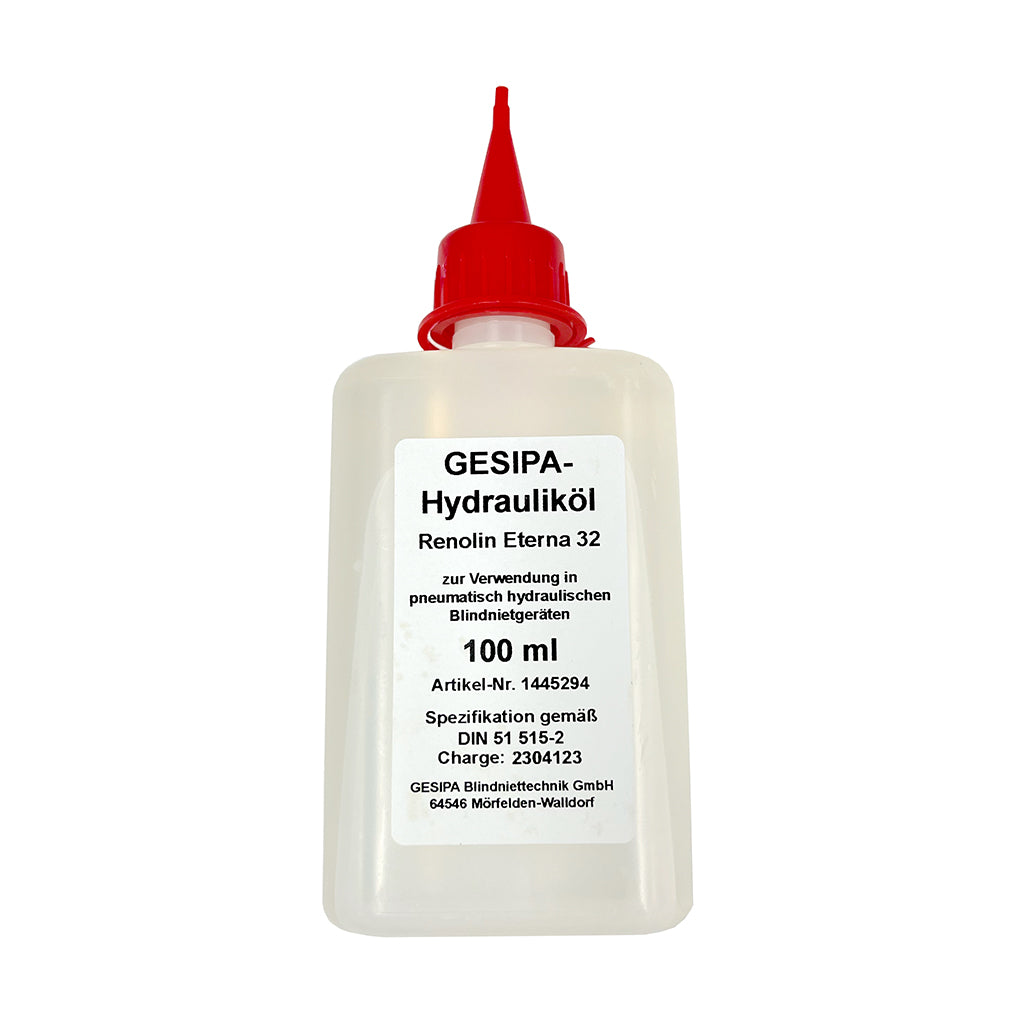

  • Gesipa Hydraulic Oil Bottle

    Hydraulic Oil Bottle 100ml

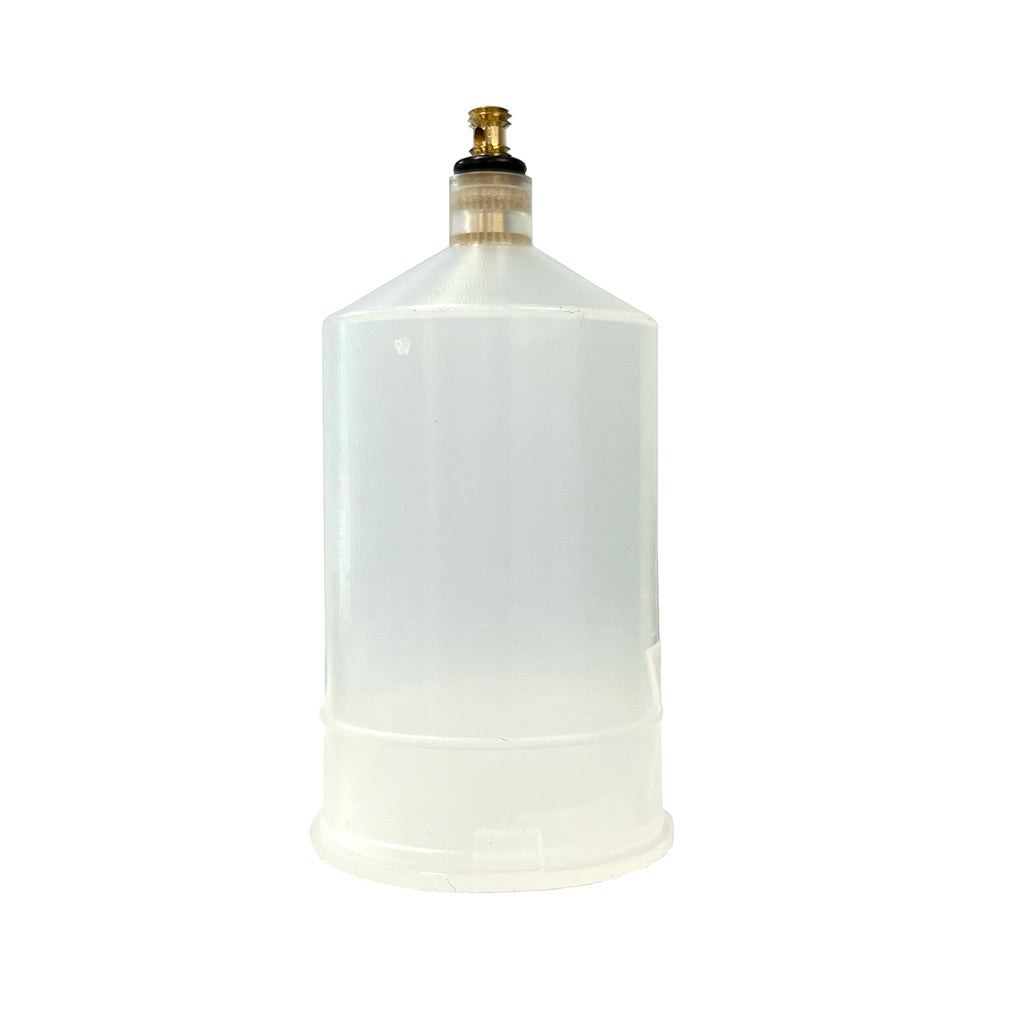

  • Gesipa Oil Refill Container

    Oil Refill Container

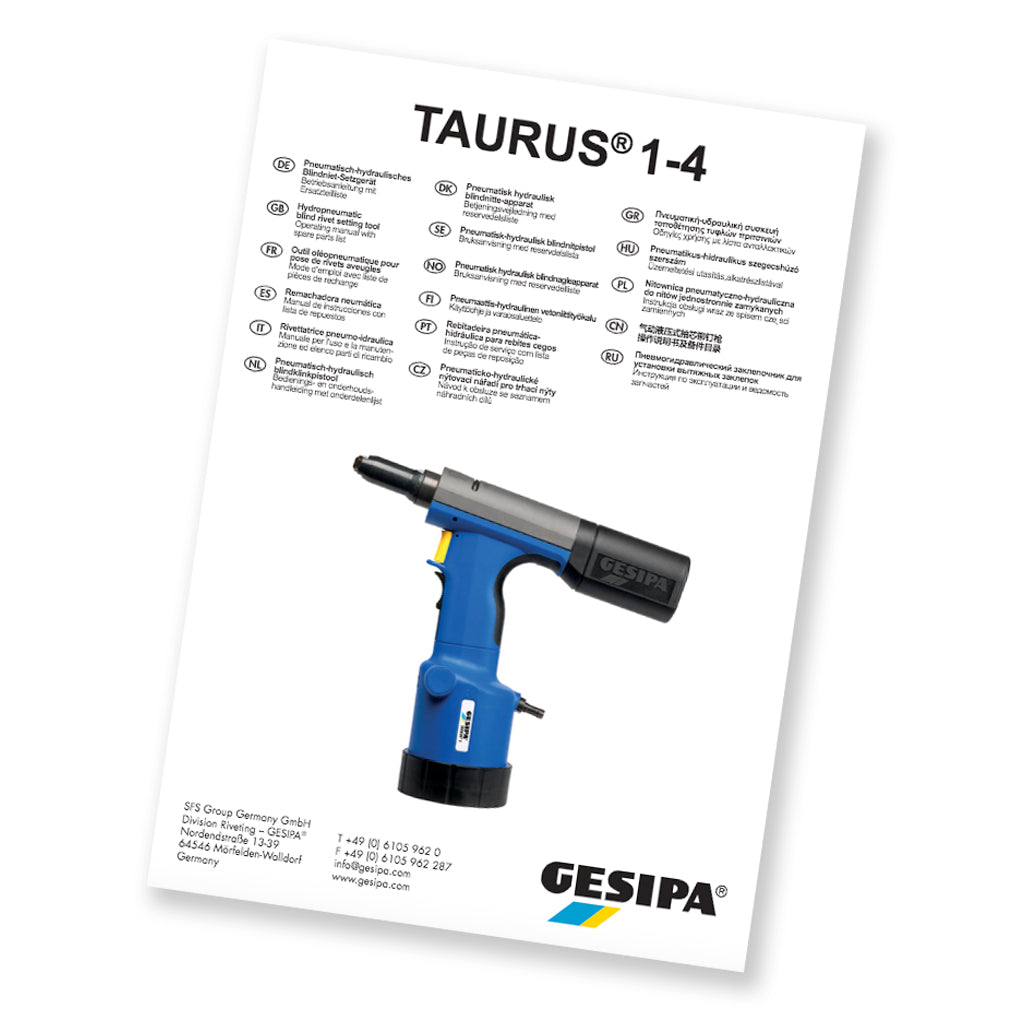

  • Gesipa Taurus Manual

    Operating Manual
