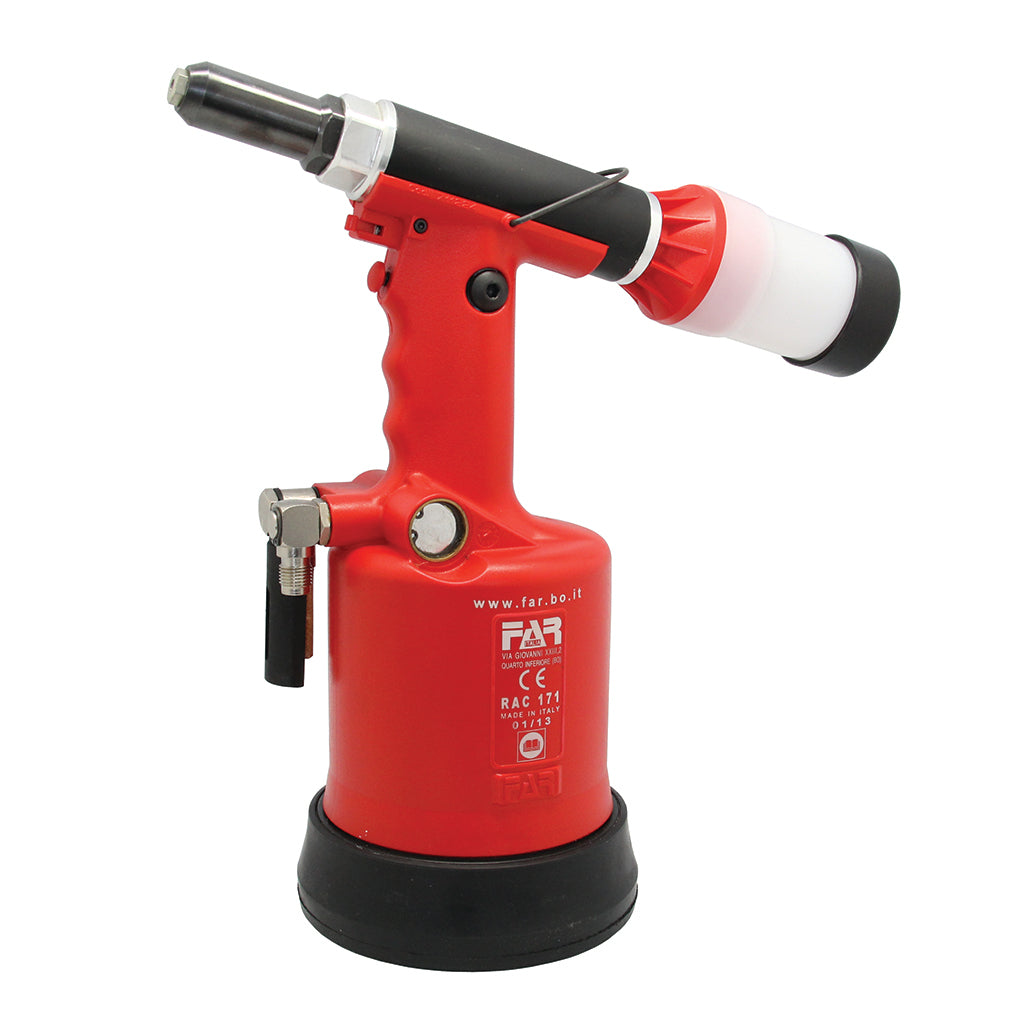

The FAR RAC171 is an industrial-grade Air Rivet Gun built for high-volume, heavy-duty riveting. It's engineered specifically for structural rivets, including Huck Magnalok® and Avdel Monobolt®. It installs rivets from 4.8mm up to 6.4mm, plus aluminium rivets up to 7.8mm (standard rivets only).
As an Authorised FAR Dealer and factory-trained service centre in Australia, RivetLab supplies the RAC171 with full local warranty backing and spare parts support, something many overseas listings can't offer.
One-hand operation is possible thanks to on/off air suction that holds the rivet in the nose, while the built-in vacuum extraction system collects spent mandrels into a detachable container, keeping the work area clear and speeding up repetitive installation runs. A refillable hydraulic oil system and swivel airline fitting (1/4" BSP) round out a tool designed for continuous production use.
Made in Italy and backed by a 12-month warranty, the RAC171 is a direct, lower-cost alternative to comparable structural riveting tools without a compromise on pulling force or build quality.
Rivet Compatibility Table
| Rivet Type | Diametre | Material |
| RivetLab Rivlok® | 3.2mm (1/8") - 6.4mm (1/4") | Aluminium, Steel, Stainless Steel |
| RivetLab Bulblok® | 3.2mm (1/8") - 6.4mm (1/4") | Aluminium, Steel, Stainless Steel |
| Huck Magnalok® | 3.2mm (1/8") - 6.4mm (1/4") | Aluminium, Steel, Stainless Steel |
| Avdel Monobolt® | 3.2mm (1/8") - 6.4mm (1/4") | Aluminium, Steel, Stainless Steel |
| Standard Rivets | Up to 7.8mm (5/16") | Aluminium |
Features
- One-hand operation - rivet retained in the nose by on/off air suction

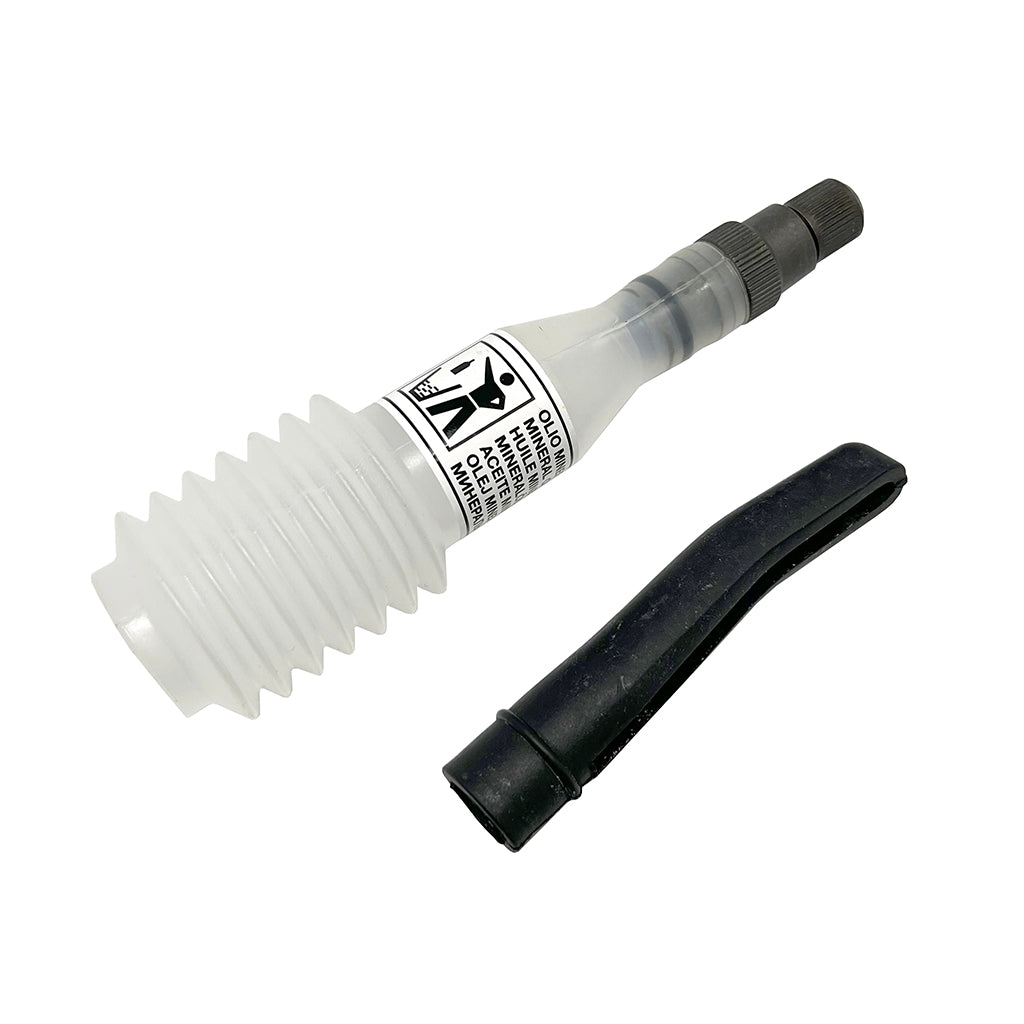

- Unique hydraulic oil refill system
- Swivel airline fitting: 1/4" BSP thread
- Spring balance attachment for fatigue-free operation
- Mandrel collecting system with vacuum extraction - dramatically improves the installation speed
- Well-balanced weight distribution and ergonomic grip for fatigue-free operation
We offer shipping to almost any address in Australia through Express Post (Australia Post) or courier services. Currently, international delivery is not available.
Depending on the product weight and your postcode, shipping charges will be calculated during the Checkout Process. In some remote areas, we may contact you to discuss additional shipping costs or determine the best method for your location. If the costs are not acceptable, we can fully refund your purchase.
For further info, refer to our Shipping Policy.
Specifications
Brand
Type
Technical specifications
Weight
Operating air pressure
Height
Length
Pulling force
Stroke
