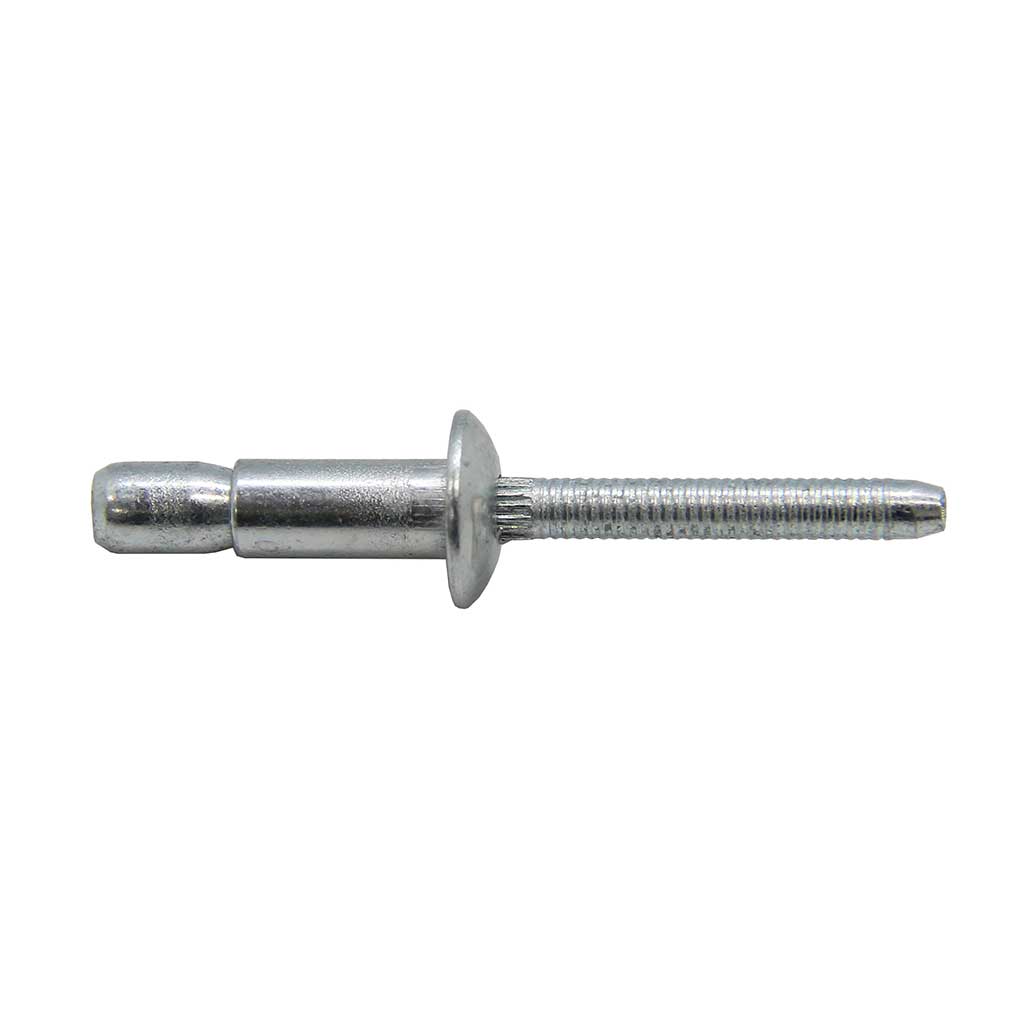

- 6.4mm (1/4") Huck® Magna-Lok® Structural Rivets
- Dome Head
- Grip Range: 2.0-9.5mm
- Hole Size: 6.8mm
- Material: Body: Low Carbon Steel
Mandrel: Medium Carbon Steel -
Finish: Body: Zinc Plated Clear Chromate
Mandrel: Zinc Plated Clear Chromate
Huck® Magna-Lok® is a high-strength, structural blind rivet engineered by Howmet® Fastening Systems to deliver unmatched performance in demanding applications. Featuring a 360º mechanical circle lock, Magna-Lok® provides exceptional resistance to loosening and vibration, making it one of the most reliable blind fastening solutions on the market.
With a wide grip range and flush-breaking mandrel, Magna-Lok® rivets ensure a clean finish, eliminating the need for grinding or filling. The innovative internal locking mechanism mechanically secures the mandrel to the body during installation - virtually eliminating the risk of mandrel pushout. The result? A tough, flush-mounted, permanent joint that delivers maximum strength and durability.
Key Features of Huck® Magna-Lok® Structural Rivets
-
Flush Mandrel/pin Break
The rivet mandrel breaks cleanly at the surface, leaving a smooth, even finish - no need for additional surface work. -
Solid-Circle Mechanical Lock
The unique 360º internal lock design maximises vibration resistance and eliminates the potential for mandrel pushout. -
Hole-Filling Design
During installation, the rivet body expands to fill the hole completely, creating a tight, moisture-resistant seal. -
Superior Clamp and Gap Pull-Out Strength
Magna-Lok® maintains excellent retained clamp force and offers high resistance to material separation under load.
Whether you're working in transport, construction, manufacturing, or heavy equipment, the Huck Magna-Lok® is the trusted blind rivet solution for high-performance, vibration-resistant fastening.
To explore other structural rivets, visit our Structural Rivets collection.
To learn more about structural rivets, read our blog: Structural Rivets: Enhancing Strength and Reliability in Construction and Manufacturing.
To understand the difference between Huck® Magna-Lok® and Avdel® Monobolt®, read our blog: MagnaLok vs. Monobolt: Key Differences Revealed!
